EQN 1325 049-2048 ID: 655251-03

EQN 1325

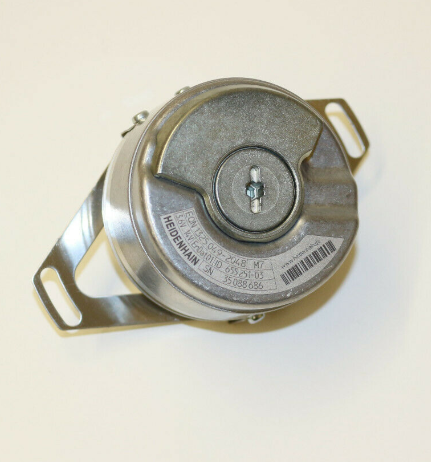

Rotary encoder with integral bearing
Differentiable
revolutions: 4096
Positions per
revolution: 8192
Data interface: EnDat01
Output code: Dual
Line count: 2048
Output signal: ~1Vpp
Cutoff frequency (-3
dB): 400.00 kHz
Power supply: 3.6 V … 14 V
Coupling version: without coupling
Shaft: Tapered shaft 1:10,
functional diameter 9.25
mm, back-off thread M10 and M6
Degree of protection: IP 40 (EN 60529)
Operating temperature: -40/+115 °C
Electrical connection: Plug connector, straight,
double-row, 12-pin, with
locking mechanism and walls
Pin configuration: D323746
Connecting direction: Cable outlet for axial and radial use
Included part: Mounting kit with spacer
plates and central screw
